Current Seeker Design
Images created: October 4, 1994
Approximate Dimensions:
- Missle body shell: 5.00 inch outer diameter
- Outer gimbal ring: 4.600 inch diagonal diameter
- Optical spider: 1.920 inch height
Image created: October 11, 1994
The full assembly includes:
Design Notes & Changes
Design notes and changes have been moved to the Design Issues page, off of the University of Utah, Alpha_1 MADEFAST Home
Page.
Previous Seeker Design

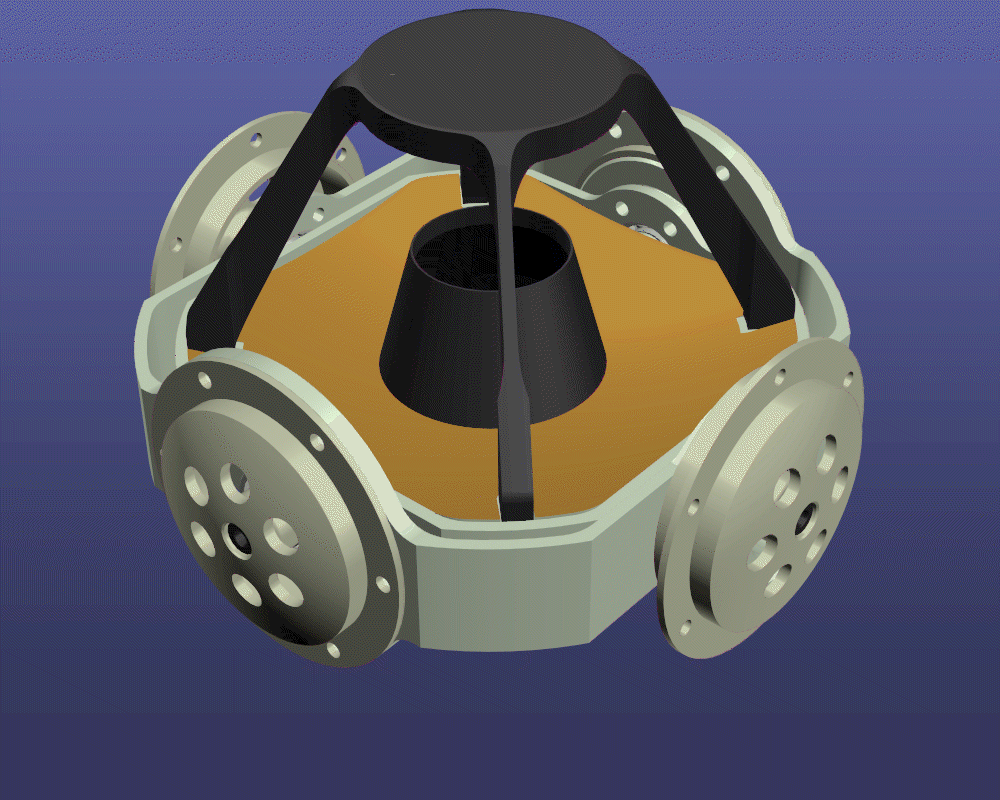

Images created: July 24, 1994
The yellow ring seen inside the outer gimbal is the payload ring, or
inner gimbal, which was intended to hold the primary mirror. This
ring has been removed from the design, making the primary mirror
itself the inner gimbal. This is accomplished by mounting the primary
mirror directly to the bearing housing.
Approximate Dimensions:
- Outer gimbal ring: 4.600 inch diagonal diameter
- Bearing caps: 2.200 inch diameter
- Optical spider: 1.920 inch height
More detail is provided on the main design components:
